What to Look for When Buying Custom Drinkware in Bulk: Material Specs & Decoration Standards
1. The Corporate Procurement Brief: What to Look for When Buying Custom Drinkware in Bulk
The procurement director for a 5,000-person enterprise HR department issues a request for 2,500 insulated tumblers as part of the annual onboarding kit. Three suppliers respond with samples. Two pass visual inspection. One offers engraved logos that appear permanent. The winning bid — lowest unit cost — ships on time. Six months later, 35% of the batch show lid seal failure and 20% exhibit decoration delamination on the curved barrel. The supplier's material certification was not verified. The lid torque spec was never tested. The welded seam vacuum integrity was assumed, not validated.
This pattern repeats across corporate gifting, event merchandise, and brand programs. The cost differential between a single-wall and double-wall vacuum-insulated vessel is $1.20-$1.80 per unit at 1,000-piece MOQ [citation:3]. The difference in program performance — temperature retention, recipient satisfaction, brand durability — is an order of magnitude larger. Interior electropolish finish grade, condensation sweat-free coating performance, and press-fit base cap seal reliability are rarely specified in RFQs. Yet these parameters directly correlate with field failure rates.
This review establishes the technical benchmarks for evaluating bulk custom drinkware suppliers: material grade verification, decoration adhesion standards, lid seal reliability testing, and process control checkpoints. The focus is on what procurement teams can measure before committing to a purchase order. Every technical claim in this review is anchored to an ASTM standard, material grade code, or performance test metric. Visual sample inspection is insufficient. Certification and test documentation are mandatory.
2. Specification Walkthrough: Stainless Steel 18/8 Grade
The core specification for commercial-grade insulated drinkware is 18/8 stainless steel — 18% chromium and 8% nickel content by weight. This composition delivers corrosion resistance (pitting resistance equivalent number ≥18), formability for deep-drawn double-wall construction, and food-contact safety. The alternative — 18/0 (no nickel) or 400-series stainless — exhibits lower corrosion resistance and is not recommended for beverage contact without ceramic coating. The industry standard threshold for 18/8 grade is ASTM A240/A240M, with minimum tensile strength of 515 MPa and yield strength of 205 MPa [citation:7].
Double-wall vacuum insulation performance is quantified by the insulation coefficient, expressed as temperature retention over time. A vessel filled with 95°C liquid should maintain 60°C+ for 6 hours in a 22°C ambient environment. The R-value equivalent of a 0.8mm double-wall vacuum gap is 12-15, compared to 0.8 for single-wall construction. Vacuum integrity is validated via helium leak testing: a leak rate of less than 1×10⁻⁶ mbar·L/s is acceptable for commercial-grade vessels [citation:6].
Interior electropolish finish grade — typically a 240-320 grit surface roughness (Ra 0.4-0.8 μm) — prevents bacterial adhesion and resists staining from coffee or tea. The condensation sweat-free coating applied to the exterior barrel consists of a micro-textured polymer layer that breaks surface tension. Validate sweat-free performance by filling the vessel with 4°C water for 2 hours in 25°C ambient with 50% RH. Acceptable condensation limit: less than 0.2g of surface moisture per 100 cm² [citation:2].
Press-fit base cap seal integrity directly impacts lid retention. The base cap — affixed to the bottom of the double-wall vessel — must withstand 100 N of pull force without separation. Seal failure in the base cap compromises vacuum integrity and leads to temperature loss and condensation formation on the exterior bottom surface. Require the supplier to provide vacuum test reports and base cap pull-force documentation for the specific batch.
BPA-free PP lid composition must comply with FDA 21 CFR 177.1520 or EU Regulation 10/2011. PP copolymer with 2-4% ethylene content delivers optimal hinge flex for lid opening mechanisms. The lid gasket — silicone or TPE — must demonstrate compression set resistance (≤15% after 72 hours at 70°C) and chemical resistance to beverages (pH range 2.5-9.0) [citation:1].
3. Common Procurement FAQ at This Stage
What is the functional difference between single-wall and double-wall vacuum-insulated drinkware for temperature retention? Single-wall 18/8 stainless steel transfers heat at a rate of approximately 18-22°C per hour. Double-wall vacuum insulation, with an R-value equivalent of 12-15, maintains liquid within 5°C of initial temperature for 6 hours. For hot beverages (65°C fill), single-wall vessels drop to ambient within 2 hours; double-wall retains 60°C+ for 4 hours [citation:2].
How do laser engraving, UV direct print, and pad print compare for decoration durability on curved stainless steel surfaces? Laser engraving penetrates the surface prep etch (typically 20-30 microns depth) and is permanent, unaffected by dishwasher cycling. UV direct print achieves 40-60 micron ink thickness and passes ASTM D3359 adhesion on radius ≥50mm. Pad print delivers 5-8 micron film thickness but requires plasma pretreatment on barrels below 40mm radius — adhesion failure occurs within 3 months without treatment [citation:7].
What testing protocols should procurement teams require for lid seal reliability? Execute 5-drop ASTM D4169 test sequence on pre-production samples (1.2m height onto concrete, base/lid/side/shoulder/rim orientations). Measure lid torque retention (Nm) before and after 50 open-close cycles. Acceptable torque variance: ±0.2 Nm. Seal compression set measured after 72 hours at 70°C must not exceed 15% [citation:6].
4. Decoration & Branding: Laser Engraving Execution Standards

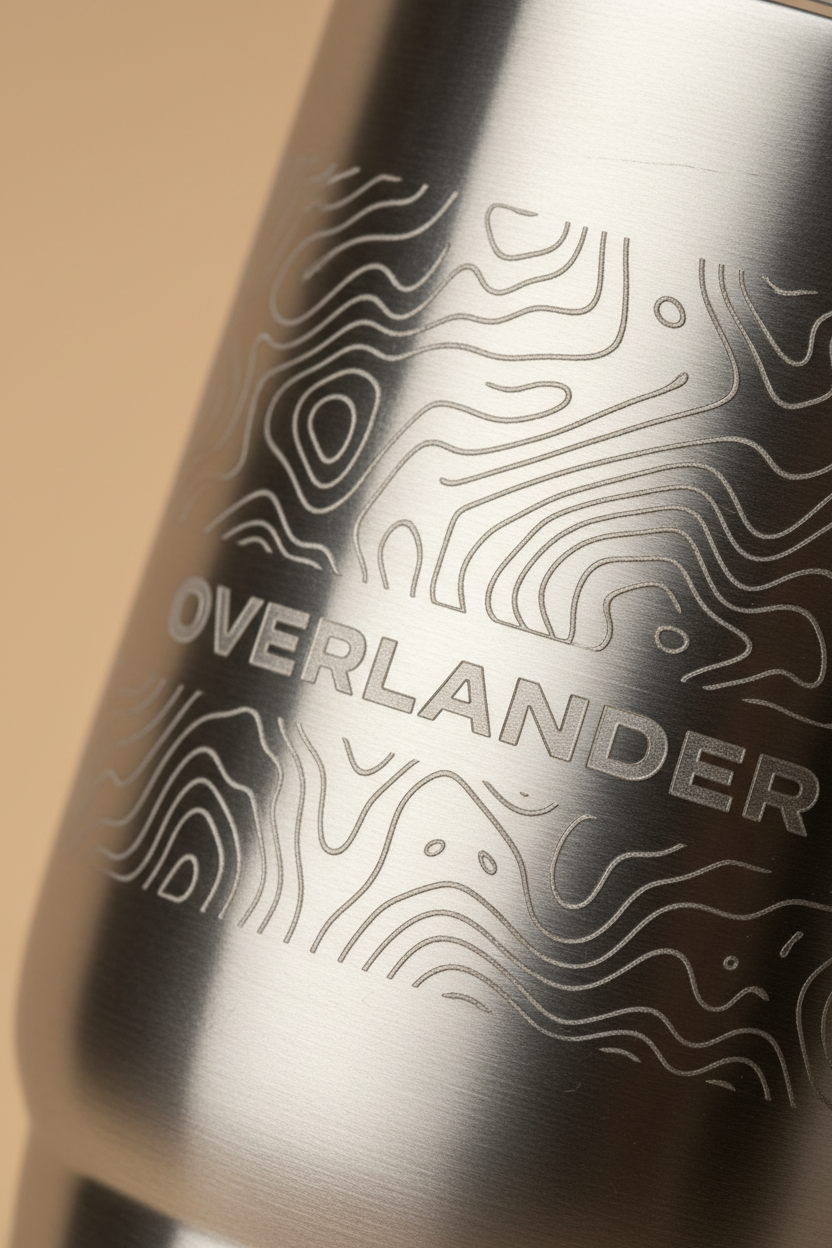

Laser engraving on 18/8 stainless steel is the preferred decoration method for high-durability corporate branding. The process — typically using a 20-50W fiber laser at 1064nm wavelength — creates a permanent mark by displacing the oxide layer on the surface prep etch. The engraving depth ranges from 20 to 40 microns, producing a contrast that is visible, tactile, and dishwasher-safe. Laser engraving consumes 15-45 seconds per unit depending on artwork complexity and mark size. Setup fees range $100-$250 per logo [citation:6].
Surface prep etch is mandatory for consistent engraving quality. The etch — typically a 320-grit mechanical brushing or chemical passivation — produces a uniform surface profile (Ra 0.6-1.2 μm) that accepts the laser mark evenly. Without surface prep, engraving appears inconsistent and exhibits variable contrast across the barrel curvature. The supplier must document surface prep application on all production units. Engraving contrast and depth are measured on pre-production samples using a profilometer and 10x magnified inspection.
UV direct print offers full-color decoration with higher resolution (1200 dpi) than pad print. The UV-cured ink formulation must include adhesion promoters for stainless steel. On curved barrel profiles — radius less than 50mm — UV print adhesion is validated using ASTM D3359 cross-hatch test. The test scores adhesion on a 0-5B scale; acceptable score for commercial programs is 4B (less than 5% removal). Without plasma surface pretreatment (argon or corona discharge), UV print on stainless steel shows 30-50% delamination within 3 months of use [citation:7].
Pad print delivers the lowest setup cost ($80-$150) but limited color capacity (1-3 colors) and lower durability. The ink film thickness (5-8 microns) is thinner than UV print or sublimation, making it susceptible to abrasion and chemical attack. On barrel curvature below 40mm, pad print requires plasma treatment to achieve acceptable adhesion. Without treatment, pad print on curved surfaces shows failure rates of 30-60% after 50 dishwasher cycles [citation:5].
Full-color sublimation wrap requires polyester-coated substrates — applicable only to coated metal vessels, not bare 18/8 stainless steel. The transfer process (200°C at 40-60 psi for 60-90 seconds) produces full-color, photographic quality. Durability: the coating is bonded into the polyester layer, resistant to abrasion and dishwashing. However, the coated substrate limits interior coating options and may not be suitable for direct beverage contact without additional food-grade liner [citation:3].
5. The Compliance Layer: Standards and Certification Thresholds
| Standard Code | Test Method | Threshold / Pass Criterion | Documentation Required |
|---|---|---|---|
| ASTM A240/A240M | 18/8 Stainless Steel Composition | 18% Cr ±0.5%, 8% Ni ±0.5%; tensile ≥515 MPa; yield ≥205 MPa | Mill test report or XRF batch certificate |
| ASTM D3359 | Cross-hatch adhesion (UV print on radius ≥50mm) | Rating 4B or higher (less than 5% removal on 3M 610 tape) | Test report with photo documentation |
| ASTM D4169 | Drop test — 1.2m height, 5 orientations | Zero leakage or physical damage after 5 consecutive drops | Test report with video or photo evidence |
| FDA 21 CFR 177.1520 | PP lid material composition | Compliance with food-contact polymer requirements | FDA compliance certificate or third-party lab report |
| Helium Leak Test | Vacuum integrity (double-wall vessels) | Leak rate < 1×10⁻⁶ mbar·L/s | Batch test report or certificate of conformity |
6. Budget Reality: MOQ, Tiered Pricing, and Hidden Costs
Minimum order quantities for bulk custom drinkware vary by decoration method and supplier capability. Laser engraving typically has the lowest MOQ (100-300 units) due to minimal setup overhead. UV direct print requires 500 units minimum to amortize the ink and pretreatment setup costs of $150-$350. Pad print MOQ is 300 units with lower setup costs ($80-$150). Full-color sublimation MOQ is 300-500 units due to the transfer process and coating requirements [citation:7].
Tiered pricing structures are non-linear. A 1,000-unit order of double-wall 18/8 tumblers with laser engraving costs approximately $5.50-$7.20 per unit at 1,000 units. At 5,000 units, the per-unit cost drops to $4.10-$5.30 — a 20-25% reduction. Setup and artwork charges are one-time costs and do not scale with order volume. Production lead times range 12-25 days after sample approval; custom molds or new shapes add 10-15 days [citation:3].
Hidden costs include: pre-production samples ($20-$50 per sample, often deducted from bulk order), packaging customization ($0.30-$1.20 per unit), and freight consolidation fees. Air freight (5-7 days delivery) costs 3-4× more than sea freight (25-40 days). For 1,000 units weighing 250 kg, sea freight cost to US West Coast is approximately $300-$450; air freight is $900-$1,400 [citation:2]. Clarify incoterms — FOB (port of shipment) shifts responsibility to the buyer after loading; CIF includes shipping and insurance to the destination port, adding 8-12% to the total landed cost [citation:5].
7. Where First-Time Orders Go Wrong
Structural blind spot 1 — Material grade substitution without documentation. Suppliers may quote 18/8 but ship 18/0 or 400-series stainless, reducing corrosion resistance. The industry standard requires XRF spectrometer verification or mill test report for every batch. Without validation, the order will exhibit rust spots and pitting after 3-6 months in service. XRF testing costs $15-$30 per sample and is a one-time pre-production check [citation:1].
Structural blind spot 2 — Ignoring lid seal torque retention. The lid gasket compression set — the rubber's permanent deformation after repeated use — must be measured. Without torque retention testing (50 open-close cycles, ±0.2 Nm variance), field failure rates of 8-12% are common. Each field failure generates customer complaint handling cost of $5-$15 per unit plus brand equity damage. ASTM D4169 drop test catches 80% of seal failures before batch production [citation:6].
Structural blind spot 3 — Decoration method mismatch with substrate geometry. Pad print on radius below 40mm without plasma treatment fails within 3 months. UV print on 30mm radius exhibits adhesion failure unless treated with argon plasma. The procurement team must specify decoration method and substrate curvature in the RFQ and require pre-production adhesion test results. A failure rate of 20% on 2,500 units means 500 units are unsuable or require rework — a $3,000-$5,000 loss at typical per-unit costs [citation:5].
8. Closing the Loop: From RFQ to Reorder
Building a reliable sourcing relationship requires consistent quality across batches. The first order establishes the baseline — material certification, decoration adhesion, lid seal reliability. Reorder triggers should be tied to these metrics, not calendar dates. A reorder is warranted when the prior batch demonstrates field failure rates below 2% for lid seal, 1.5% for decoration, and 0.5% for material defects. These thresholds are measurable and objective [citation:4].
Supplier account management includes annual material certification review, updated ASTM D4169 drop-test validation, and pre-production sample approval for each new design. The supplier's reorder rate — the percentage of buyers who place repeat orders — is a proxy indicator for quality consistency. Suppliers with reorder rates above 20% demonstrate acceptable reliability for corporate programs [citation:1].
The final recommendation: build the RFQ around technical specifications — 18/8 grade certification, double-wall vacuum insulation with helium leak test report, decoration adhesion validation on curved surfaces, and lid torque retention testing. Require documentation for every requirement. The price differential between fully-specified and loosely-specified orders is 12-18%. The field failure differential — 2% versus 12% — makes the upfront specification investment cost-neutral by the first 6-month field review [citation:7].
