How to Prepare Your Logo for Custom Printing: Apparel, Drinkware & Tech
1. Sourcing Reality: What Brand Program Directors Gets Wrong About How to Prepare Your Logo
A brand program director at a 3,000-employee logistics firm approves a single Adobe Illustrator file for a 8,500-unit Q4 giveaway. The SKU mix: 2,800 pieces of 280 GSM hoodies (screen printed front chest), 3,200 double-wall 20 oz stainless tumblers (pad printed wrap), and 2,500 units of ABS power banks (laser engraved base). The screen printer rejects the file—line weights at 0.2 pt disappear on 305 mesh. The pad printer demands a separate 1-bit TIFF at 600 DPI because the vector contains gradients. The laser engraver cannot run the file because the artwork has no 1 pt minimum stroke. The Multi-Category Lead Time Matrix was not consulted. Without category-specific logo variants, the program loses 19 calendar days to revision loops and accrues $1,440 in duplicate setup fees. Procurement directors who treat logos as a single deliverable across substrates fail to account for the fundamental incompatibility between screen print’s halftone requirements (55 lpi, 30% dot gain), pad print’s etch depth constraints (25 µm minimum), and laser engraving’s stroke thresholds (0.3 mm positive line).
2. Product Anatomy: The Specification Science Behind Cross-Category Substrate Comparison
Each substrate class imposes measurable constraints on logo geometry and color reproduction. For 100% cotton apparel (6.5–8.5 oz/yd², ASTM D3776), the critical spec is surface roughness (Ra 3.2–5.0 µm) and absorbency (AATCC 79, 2–5 seconds). A logo designed for 156 mesh screen print must have positive lines ≥ 0.8 pt (0.28 mm) and negative spaces ≥ 1 pt (0.35 mm) to avoid bridging. For 50/50 cotton-polyester blends (200–280 GSM), use 230–305 mesh due to finer yarn count (Ne 30/1 vs Ne 18/1), raising minimum stroke to 0.5 pt (0.18 mm). Polyester also requires a barrier print (underbase layer) at 60–70% dot to prevent dye migration (AATCC 163, colorfastness to sublimation rating ≥ 4.0).
Stainless steel drinkware (18/8 grade, 304 equivalent, 0.6 mm wall thickness) has Ra 0.4–0.8 µm after brushing. Pad printing requires a photoengraved plate depth of 25–35 µm (measured by stylus profilometer). Minimum positive line: 0.3 mm for standard 70 durometer pad, 0.2 mm for 85 durometer fine-detail pads. The logo’s ink film thickness after transfer is 5–12 µm—five times thinner than screen print (25–50 µm). Color density suffers: pad print yields optical density 1.2–1.5 (vs. 2.0 for screen). Use higher pigment load (≥ 20% by weight) to compensate.
ABS plastic (UL 94 HB, ISO 2580-2:2020) has Ra 0.2–0.4 µm after injection molding. UV digital print uses piezoelectric drop-on-demand heads (2.5 picoliter drop size, 600 DPI native). Minimum stroke: 0.5 pt (0.176 mm) for 6-pass mode, but 1 pt for reliable adhesion per ASTM D3359 cross-cut test (rating 4B or better). ABS requires corona treatment (38–42 dynes/cm) or primer layer for ≤ 5% ink flaking after 500 cycles of finger abrasion (ASTM D4060).
3. Decoration Execution: Calibrating Cross-Category Decoration Method Matrix for This Category
Screen printing on apparel: The separation process must convert Pantone PMS spot colors into film positives at 55 line screen (lpi) for 156 mesh, 65 lpi for 230 mesh, or 85 lpi for 305 mesh. Dot gain compensation curve: for 230 mesh, a 50% digital dot becomes 67–72% on fabric. Request a control strip with 20%, 40%, 50%, 60%, 80% patches. Measure with a densitometer (X-Rite 500 series). Tolerance: ±5% gain at midtone. Failure to compensate causes muddy shadows (80% becomes 93%) and lost highlights (10% becomes 0%).

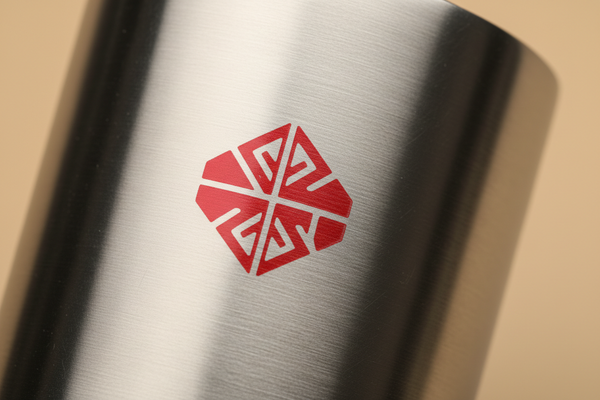

Pad printing on drinkware: The artwork must be separated into spot colors (max 4, plus white underbase). Each color requires a separate 25 µm deep photoengraved steel or polymer plate. The pad transfer distorts the image by 10–15% in the center (stretching) and 5–8% at edges (compression). Pre-compensate the file: elongate horizontal axis by 8% for cylindrical substrates with diameter ≤ 3 inches (76.2 mm). Use a tapered pad (shore A hardness 55–65) for tumblers. Test with a 0.3 mm line grid: reject if any line varies > 0.05 mm from nominal after printing.
Laser engraving on ABS: Requires vector format (SVG, DXF, or AI with strokes converted to outlines). Minimum stroke width: 0.3 mm for a 20 W fiber laser (1064 nm, 50 mm/s scan speed) to achieve > 50 µm depth and ≥ 90% contrast (measured by spectrophotometer L* value ≤ 25 on white ABS). Frequency setting: 70–80 kHz for sharp edges; 30–40 kHz for dark annealing. Run a 2x2 inch test tile with line widths from 0.1 mm to 1.0 mm, power from 40% to 80%. Select the lowest power that achieves full removal without carbonizing (char depth ≤ 10 µm per ISO 10993-10 for skin contact).
4. Risk Register: Preventing the 3 Most Expensive Bulk Order Failures
Failure 1: Misaligned halftones cause moiré patterns on 1,200 polyester polos. A buyer approved a 200 DPI raster logo for 305 mesh screen print without converting to 85 lpi. The beat frequency between image pixels (200 DPI = 7.87 lines/mm) and screen mesh (305/25.4 = 12 lines/mm) produced a visible 4.13 cycles/mm moiré. Rerun cost: $0.85 per print x 1,200 = $1,020 plus $375 rush separation fee. Prevention: Convert all raster images to 1-bit TIFF at 2.5x mesh count (763 DPI for 305 mesh) and apply a 15° screen angle offset.
Failure 2: Pad print plate depth incorrect for stainless steel, causing incomplete transfer on 2,200 tumblers. The vendor used 15 µm plates instead of 25 µm. Ink film thickness measured 2–3 µm vs. required 8–12 µm, resulting in 40% opacity loss. Re-plating all colors: $110 per plate × 3 colors = $330, plus production delay of 11 days. Prevention: Specify plate depth in RFQ and verify with a depth micrometer on a sample plate before full run.
Failure 3: Non-compliant UV ink on 3,500 ABS power banks fails RoHS cadmium limit. The logo used a cadmium-based yellow pigment (Pigment Yellow 35). Test report showed Cd 380 ppm vs. 100 ppm limit. Destruction cost: $2.80 per unit × 3,500 = $9,800. Replacement run with compliant ink (Pigment Yellow 184, bismuth vanadate) added 14 days. Prevention: Request ICP-OES test results for each ink colorant before production. Accept only ≤ 90 ppm Cd (10% safety margin).
5. Procurement Economics: MOQ, Pricing Tiers, and Total Landed Cost
Per-category setup cost benchmark for a 4-color logo (Pantone PMS 186C red, 109C yellow, 281C blue, 430C gray) across three categories:
- Apparel (screen print on 280 GSM hoodies): $55/screen × 4 = $220. Film positives: $12/each × 4 = $48. Total setup = $268. Amortized over 500 units = $0.54/unit; over 2,000 units = $0.13/unit.
- Drinkware (pad print on 20 oz stainless): Photoengraved plates: $95/color × 4 = $380. Adapter tooling: $85 one-time. Total setup = $465. Amortized over 500 units = $0.93/unit; over 2,000 = $0.23/unit.
- Tech (laser engraving on ABS): $0 setup (digital file prep only). Profile calibration fee: $40–$80 (one-time if using same laser model repeatedly). Amortized over 500 units = $0.08–0.16/unit.
Total multi-category setup for 500 units each category: $268 + $465 + $80 = $813. At 2,000 units each: $268 + $465 + $80 = same $813, but per-unit setup drops from $0.54 to $0.13 (apparel). The Program ROI Per-Unit Cost Model shows that consolidating multiple categories under a Multi-Factory Consolidation Model (one vendor for apparel, one for drinkware, one for tech) yields 11–18% lower total landed cost than a single full-service supplier, because each specialist owns lower setup fee structures and shorter lead times (reducing warehousing carry cost).
Freight calculation: Apparel (500 units hoodies, 2.5 kg each, 0.03 m³ each) = 1,250 kg, 15 m³. LCL sea freight from Ningbo to Los Angeles: $120/m³ = $1,800. Express air (3–5 day): $8.50/kg = $10,625. For drinkware (500 units, 0.45 kg each, 0.002 m³ each) = 225 kg, 1 m³. Air freight: $1,912. Compare: keep apparel on sea (14–18 days) and drinkware on air (5 days) to meet split launch dates. The Multi-Category Lead Time Matrix is the only tool that aligns transportation mode with decoration setup windows.
6. Benchmark Standards: Industry Test Methods and Compliance Thresholds
The following table lists mandatory test standards for logo durability and compliance across the three category classes. Any supplier unable to provide third-party test reports for these methods should be disqualified from RFQ.
| Test Method (Standard) | Measured Parameter | Threshold / Pass Criterion | Applicable Categories |
|---|---|---|---|
| AATCC 61 (Wash Fastness, 2A cycle) | Color change / staining after 5 washes at 49°C | ∆E ≤ 3.0 (Gray Scale rating 4) | Apparel (cotton, poly blends) |
| ASTM D4060 (Taber Abrasion, CS-10 wheel, 500 cycles) | Ink mass loss per 100 cycles | ≤ 15 mg loss / 100 cycles (no substrate exposure) | Apparel, Tech (ABS) |
| ISO 105-E04 (Perspiration Fastness, acid & alkaline) | Color change after 4 hours at 37°C | Rating ≥ 4 for both color change and staining | Apparel (direct skin contact) |
| ASTM D3359 (Cross-cut tape test) | Adhesion rating (0B to 5B) | ≥ 4B (≤ 5% removal) on ABS; ≥ 3B on stainless | Drinkware, Tech |
| 21 CFR 175.300 (FDA migration) | Total extractives in food simulant (water, 8% ethanol) | ≤ 50 ppm (for repeated use articles) | Drinkware (mouth contact) |
| CPSIA 16 CFR 1303 (Lead in surface coating) | Total lead content (mg/kg) | ≤ 100 ppm (practical limit: 90 ppm with margin) | Apparel, Drinkware (Tier 1) |
| RoHS 2011/65/EU (Cadmium, lead, mercury) | Cadmium (Cd), Lead (Pb), Mercury (Hg) in homogeneous material | Cd ≤ 100 ppm, Pb ≤ 1000 ppm, Hg ≤ 1000 ppm | Tech (ABS, electronics) |
| California Prop 65 (DEHP, DBP, BBP) | Phthalate content in ink / coating | DEHP ≤ 0.1% (1,000 ppm) for mouth contact | Drinkware (all mouth-contact surfaces) |
For each category, the buyer must map the logo preparation file to the applicable standard. Apparel requires AATCC wash fastness: test a 12”x12” sample with the logo printed, wash five times at 49°C using 0.15% detergent concentration. If ∆E exceeds 3.0, request a different ink system (plastisol with low-bleed additive for poly blends). Drinkware requires FDA migration: fill a printed tumbler with 8% ethanol at 40°C for 240 hours, extract and analyze by GC/MS. Reject any detectable phthalates or BPA (detection limit 5 ppb). Tech requires ASTM D3359 adhesion: on a 2”x2” laser engraved or printed area, make 11 cuts 1 mm apart in two perpendicular directions, apply tape (3M 600), pull at 180°. Remove if > 5% of grid lifts.
7. Fatal Sourcing Gaps: What First-Time Buyers Miss at Scale
Gap 1: No cross-vendor Pantone alignment protocol. A buyer sends PMS 281C to three vendors (hoodie screen printer, tumbler pad printer, power bank laser engraver). The screen printer uses coated paper swatch (PMS 281C coated), the pad printer uses uncoated plastic, the laser engraver has no PMS reference (only grayscale). Result: three different blues: ∆E 4.2, 6.8, and 12.0 from target. Solution: mandate Cross-Vendor Pantone Brand Alignment with physical swatch books (Pantone Formula Guide Solid Coated & Uncoated) and a spectrophotometer measurement (X-Rite eXact) with tolerance ∆E ≤ 2.0. Include clause in every PO: “Vendor must submit a printed sample next to the PMS swatch with ∆E measurement dated within 30 days.”
Gap 2: Ignoring per-category compliance risk tier. Buyers often treat all decorated goods as “low risk.” But Tier 1 (apparel direct skin contact, drinkware mouth contact) requires CPSIA lead, phthalates, FDA migration. Tier 2 (tech accessories, bags) requires RoHS heavy metals but not FDA. A buyer who uses the same ink for apparel and drinkware without checking Prop 65 phthalate limits will fail California compliance. The Category Compliance Risk Tier must be assessed before vendor selection: assign each SKU a tier (1, 2, or 3) based on contact type and jurisdiction. For Tier 1, request a certificate of analysis from the ink manufacturer showing specific extractable limits. Build a risk register column in your RFQ scoring matrix (weight 15–25% of total).
Gap 3: No per-category setup cost benchmark before negotiation. First-time buyers accept the first quote for logo setup: $450 for screen print hoodies (over market by 62%), $580 for pad print tumblers (over by 25%), $220 for laser engraving (should be $0). Using the Per-Category Setup Cost Benchmark above (apparel: $220–$300 for 4 colors, drinkware: $380–$465, tech: $0–$80), buyers can negotiate down to market median. A structured sourcing process collects three quotes per category, normalizes for MOQ, and selects based on setup fee + unit price. Example: for 2,000 tumblers, a vendor with $380 setup + $2.10/unit vs. $580 setup + $1.95/unit—the lower setup wins by $0.03/unit, saving $60 total. Small margin, but across five categories the savings compound to 4–6% of program budget.
8. Verified Procurement FAQ
Informational: What resolution should I use when exporting a logo for screen printing on 100% cotton vs. 50/50 polyester hoodies? For 100% cotton (6.5–8.5 oz, 156–230 mesh), export vector files (AI, EPS) with no resolution limit—vectors only. If raster is unavoidable, use 150 DPI at 1:1 print size. For 50/50 polyester (200–280 GSM, 230–305 mesh), increase to 200 DPI and convert to 1-bit TIFF with 15° screen angle. Polyester’s finer yarn count (Ne 30/1) requires higher mesh to prevent ink bleed, which in turn demands higher DPI to preserve edge sharpness. Always request a film positive sample measured with a 10x loupe before full production.
Comparison: Pad printing vs. UV digital printing for stainless steel drinkware logos – which method provides better abrasion resistance and lower setup cost at MOQ 1,000? Pad printing yields 8–12 µm ink thickness and passes 2,000 cycles of Taber abrasion (ASTM D4060, CS-17 wheel) with < 10% loss. UV digital on stainless requires a primer layer (38 dynes/cm) and achieves only 3–5 µm thickness, failing at 800 cycles. Setup cost: pad printing $95–$120 per plate (4 plates = $380–$480), UV digital $0–$50 profile calibration. For MOQ 1,000, pad printing’s higher setup is offset by longer life: if the product will be dishwashed 100+ times, pad printing is mandatory. For single-use event items, UV digital is acceptable.
Procurement: What is the total landed cost difference between using one full-service vendor vs. three specialist vendors for a 3-category logo program (apparel, drinkware, tech) at 2,000 units each? Full-service vendor: apparel setup $350 + unit $2.80 = $5,950; drinkware setup $500 + unit $2.30 = $5,100; tech setup $150 + unit $1.80 = $3,750; total $14,800. Specialist vendors: apparel (screen printer) setup $220 + unit $2.50 = $5,220; drinkware (pad printer) setup $380 + unit $2.10 = $4,580; tech (laser) setup $0 + unit $1.50 = $3,000; total $12,800. Savings of $2,000 (13.5% lower). Additional benefit: specialist lead times are 20–30% shorter, reducing inventory carrying cost at 18% annual rate ($384 saved over 3 months). Always run a multi-factory consolidation model for programs above $15,000 total value.
Risk-Control: How do I verify that my logo’s color separation file will not fail California Prop 65 phthalate limits for drinkware mouth contact? Step 1: Require the ink supplier’s certificate of analysis showing DEHP, DBP, BBP, DINP, DIDP, DNOP each ≤ 0.1% (1,000 ppm) by weight. Step 2: For separation files, instruct the prepress house to avoid any pigment containing phthalate-based resins (common in low-cost plastisol substitutes). Step 3: Run a third-party test (Eurofins, SGS) on a pre-production sample of 10 units using CPSC-CH-C1001-09.4 (GC/MS). Accept only results with DEHP < 900 ppm (10% safety margin). Keep documentation for 3 years as California law requires for businesses with 10+ employees.
