How to Check a Sample: A Head-to-Head Specification Comparison

You receive a custom apparel sample. It looks right. The colors match the PMS swatch. The logo placement is correct. You approve the sample based on visual criteria alone. Three weeks later, the bulk shipment arrives. After one commercial wash cycle, the garments shrink 12%—specified 5%. The chest print cracks at the neckline. The fabric weight measures 160 GSM against 180 GSM. You are left with 5,000 defective garments and no leverage.

This failure pattern repeats across corporate apparel programs when buyers skip the technical audit. The difference between a visual approval and a qualified approval rests on six measurable parameters: substrate weight (GSM per ASTM D3776), shrinkage tolerance (AATCC 135), decoration adhesion (ASTM D3359), colorfastness (ISO 105-C06), decoration density (stitch count or mesh), and construction consistency (yarn type and twist). Each parameter has a documented standard and a pass/fail threshold. Each failure carries a quantifiable cost.

This article provides the procurement veteran's sample approval protocol—six checkpoints that catch substrate defects, decoration failures, and dimensional variances before bulk production. The protocol works for corporate brand programs, event merchandise, and wholesale distribution. It applies to cotton, polyester, and blended substrates. It covers screen printing, embroidery, DTF, and heat transfer vinyl. The method is objective, standard-based, and executable with simple test equipment.

2. Side-by-Side: Cotton GSM Ranges Benchmark Table

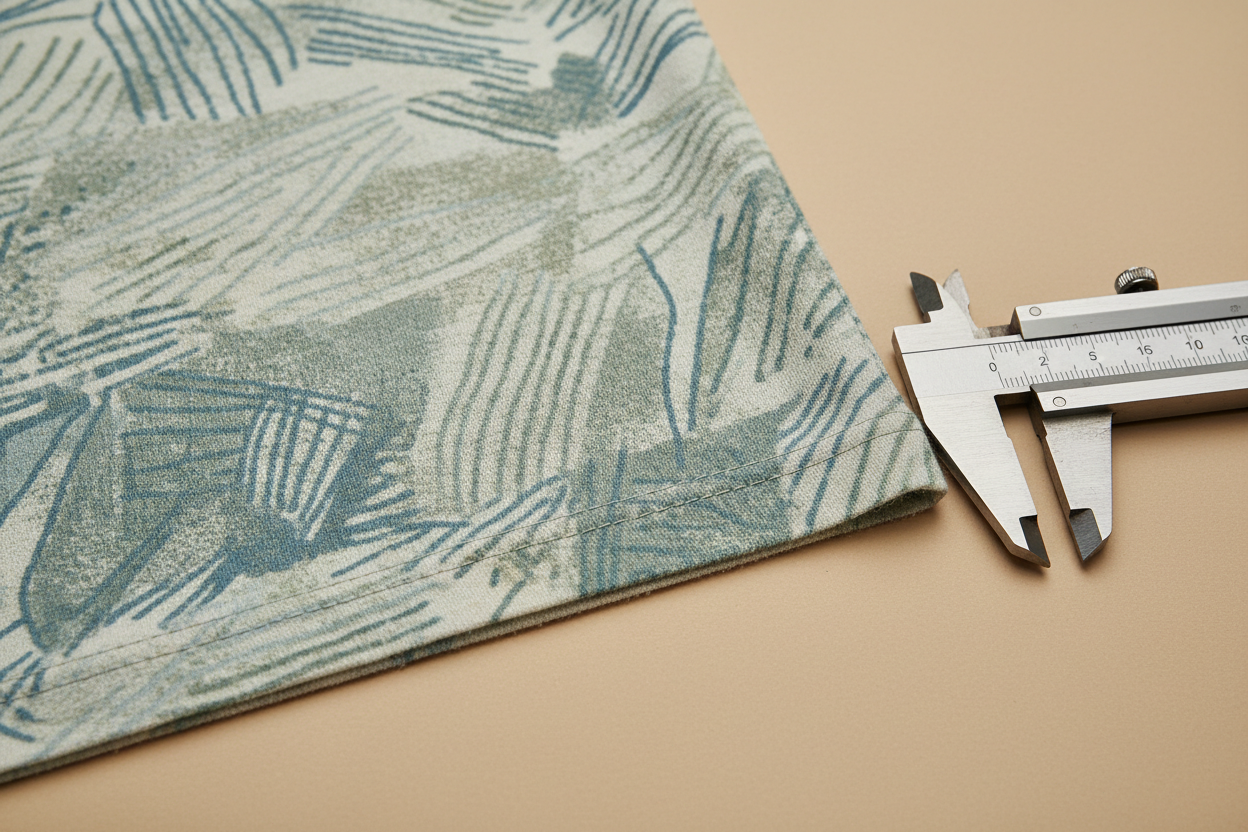

GSM measurement requires a circular cutter (100 cm²) and a calibrated scale. ASTM D3776 provides the standard test procedure. Cut five specimens from different areas of the sample. Average the weight. A 180 GSM target must measure 171–189 GSM. GSM below the tolerance indicates yarn substitution from ring-spun to open-end construction, reducing fabric strength and print quality. The difference is visible in fabric hand—open-end feels coarser, less uniform.

Shrinkage testing follows AATCC 135. Wash the sample at 40°C with standard detergent for three complete cycles. Measure length and width before and after each wash. The industry standard for corporate apparel is 3% maximum residual shrinkage. For a 50/50 blend, 3% translates to a 75 cm garment losing 2.25 cm in length after washing. A 100% cotton garment at 5% shrinkage loses 3.75 cm—a full size drop. Many buyers do not notice the shrinkage until the bulk shipment is worn once.

The fabric construction informs the decoration method compatibility. Open-End Yarn Twist Variance affects ink absorption and print sharpness. Ring-spun cotton absorbs dye more uniformly due to tighter twist angle (26–32 degrees). Open-end uses a looser twist (18–22 degrees), creating a more absorbent but less durable surface. Screen printing on open-end cotton yields sharper prints because the ink penetrates deeper, but the garment loses shape faster. The specification must match the end-use.

3. Where Screen Print Changes the Calculation

Screen printing dominates apparel decoration for its cost efficiency at volume. The process uses a stencil on a fine mesh (156–230 threads per inch) to deposit ink onto the fabric. The ink formulation is critical: plastisol ink contains PVC resin and plasticizer, requiring curing at 160°C for 45–60 seconds. Water-based ink uses pigment and water, requiring cotton content above 80% for absorption. Both methods fail if the substrate is incompatible.

Polyester substrates present a challenge. The synthetic fibers do not absorb water-based ink. Plastisol ink adheres but requires a white underbase for color opacity—adding 0.15–0.25 per print location. The heat setting process (160°C) can cause sublimation dye migration from polyester fibers, resulting in color bleeding. For 100% polyester, screen printers often use a low-bleed ink formulation or add a barrier layer. The sample must be tested for dye migration before bulk production. A simple test: heat press the printed sample at 160°C for 60 seconds. If the fabric transfers color to the press surface, the dye is unstable.

Embroidery uses a different method. The Embroidery Stitch Density Count measures stitches per linear millimeter. The industry minimum for corporate logos is 7.5 stitches/mm (ASTM D6193). Higher density (8.5–9.5 stitches/mm) yields crisper details but increases production time by 15–20%. Lower density creates visible gaps in the design. A 5 mm letter at 7.5 stitches/mm uses 37.5 stitches per millimeter—a visible density that fills the fabric completely. At 6 stitches/mm, the same letter shows gaps between stitches, reducing legibility. Verify stitch density by counting stitches in a 1 cm segment of the embroidery.

DTF (Direct-to-Film) transfers offer a different substrate challenge. DTF uses a PET film as a carrier, applying a polymer adhesive layer (melting point 110–120°C) that bonds to the substrate. The adhesion polymer must be compatible with the substrate chemistry. On polyester, the adhesive bonds well. On cotton, it bonds well. On moisture-wicking polyester (hydrophilic coatings), the adhesive fails. Test Heat Transfer Vinyl Peel Strength per ASTM D903: the peel strength must exceed 2.0 N/cm. Lower peel strength results in delamination after 4–6 wash cycles.

The Cross-Vendor Pantone Brand Alignment framework applies to sample inspection. A sample match visually may not hold across substrates. Pantone references convert differently on cotton versus polyester. Cotton absorbs dye deeper, yielding darker values. Polyester reflects light differently, appearing brighter. The spectrophotometer reading (ΔE ≤ 2.0) is the only reliable verification method. Visual matching is not acceptable for multi-SKU programs.

4. Procurement Math: Landed Cost Across Volume Tiers

The Program ROI Per-Unit Cost Model calculates total cost across substrate selection and decoration method. The math shifts at volume tiers. For a 500-unit order of 180 GSM cotton t-shirts with 2-color screen printing, the unit cost distribution: garment cost ($2.50–$3.50), decoration cost ($0.35–$0.65 per color), setup cost amortization ($100–$150 divided across units), and freight ($0.25–$0.50 per unit). Total landed cost per unit: $3.50–$5.00.

At 5,000 units, the economics change. Garment cost drops 15–20% to $2.00–$2.80. Decoration cost per unit drops 30–40% to $0.20–$0.40 per color. Setup cost amortization drops to $0.02–$0.03 per unit. Total landed cost per unit: $2.75–$3.80. The delta at volume justifies substrate upgrades: ring-spun cotton adds $0.50–$1.00 per unit at 500 units, but only $0.30–$0.60 at 5,000 units. The Per-Category Setup Cost Benchmark identifies these thresholds.

The Pre-Shrink Treatment Tolerance adds a cost factor. Pre-shrunk fabric (treated with compressive shrinkage) costs $0.15–$0.30 per unit more than non-pre-shrunk. At 5,000 units, this adds $750–$1,500 to the garment cost. Without pre-shrink treatment, the bulk order may shrink 5–6% (100% cotton) resulting in size mismatches. The specification must state the residual shrinkage tolerance and require a wash test on the pre-production sample.

Freight calculation depends on order consolidation. A single 5,000-unit order (estimated 500–600 kg) in a consolidated 20-foot container costs $2,500–$4,000 from Asian suppliers. Separate shipments from multiple vendors cost $5,000–$8,000. The Multi-Factory Consolidation Model aligns production schedules so all categories finish within a 3–5 day window, enabling consolidated shipping. The buyer must specify consolidation in the RFQ terms.

5. Three Failure Modes Procurement Teams Don't See Coming

Failure 1: Crocking Wet/Dry Friction Scale Failure. A buyer approved 3,000 branded t-shirts based on visual inspection. After 15 wear cycles, the printed area transferred color to white undershirts. The Crocking Wet/Dry Friction Scale requires dry rubbing Grade 4 (minimal transfer) and wet rubbing Grade 3.5 (moderate transfer) per ISO 105-X12. The production batch measured Grade 2.5 dry—high transfer. The replacement cost: $12,000 for the garments plus $3,000 for expedited shipping. The root cause: insufficient ink curing at 160°C. The sample passed visual but failed the crockmeter test.

Failure 2: Open-End Yarn Twist Variance. A 5,000-piece order of 50/50 t-shirts specified ring-spun construction. The supplier substituted open-end yarn (lower twist angle, 18–22 degrees versus 26–32 degrees). The fabric felt heavier—190 GSM versus 180—but the fabric strength dropped 25–30% due to the looser twist. After three commercial launderings, the collars lost shape and the fabric pilled. The cost of replacement garments and re-branding: $18,000. The sample should have been tested for yarn twist via microscopic analysis (ASTM D2256) or a simple fabric burn test (cotton burns vs. polyester melts).

Failure 3: Moisture-Wicking Capillary Rate Mismatch. An event merchandise buyer approved 2,500 moisture-wicking t-shirts for a 3-day outdoor music festival. The sample passed visual checks. The bulk order had a capillary rate of 6 cm/30 min—well below the specification of 12 cm/30 min (AATCC 197). The garments failed to wick moisture, causing discomfort and negative brand exposure. The return and replacement cost: $10,500. The buyer failed to verify the capillary rate on the sample. A simple vertical wicking test (AATCC 197) requires a 25 mm x 200 mm fabric strip suspended in water. The water rise rate is measured at 30 minutes.

Each failure is preventable with a 6-point technical audit applied to the sample. The audit must include GSM measurement (ASTM D3776), shrinkage testing (AATCC 135), adhesion testing (ASTM D3359), crocking (ISO 105-X12), yarn verification (ASTM D2256), and wicking test (AATCC 197) for moisture-wicking programs. The audit cost: $50–$150 for test equipment. The failure cost: $10,000–$20,000 per incident.

6. Compliance Checkpoints Before You Sign the PO

Corporate apparel programs must meet regulatory compliance standards across material, decoration, and chemical content. The Category Compliance Risk Tier framework identifies requirements by product type. Apparel falls under Tier 1 (high risk) due to direct skin contact and potential chemical exposure. The primary standards: CPSIA lead content (below 100 ppm for children's items), phthalate limits (below 1,000 ppm), and formaldehyde content (below 75 ppm per Japanese Law 112).

Test method verification: CPSIA lead content uses X-ray fluorescence (XRF) or wet chemistry digestion with ICP-MS. The supplier must provide a test report from an ISO 17025-accredited lab for each batch. Request the report before sample approval. The report must show the measured lead level (e.g., 12 ppm) and the detection limit (e.g., 2 ppm). Reject reports showing "None detected" without quantitative values—this is not a valid test result.

For polyester substrates, phthalate testing applies to the printing and coating materials. Plastisol ink may contain phthalates (DEHP, DBP, BBP) as plasticizers. The threshold: each phthalate below 1,000 ppm, total below 1,500 ppm. Test method: GC-MS (gas chromatography-mass spectrometry). Require a phthalate test report for the ink formulation. Many suppliers rely on a blanket "phthalate-free" statement—this is insufficient. Request the specific test result.

Colorfastness to laundering per ISO 105-C06 is a quality metric, not a compliance requirement, but it determines the end-use life. A Grade 3 garment will show visible fading after 10 washes (a 12-month corporate uniform program). A Grade 4-5 garment maintains color integrity through 50+ washes (3–4 years of regular use). Specify ISO 105-C06 Grade 4-5 in your purchasing contract and test the sample before approval.

Documentation requirements: Request the material safety data sheet (MSDS) for all chemicals (inks, adhesives, coatings). Verify heavy metal content (lead, cadmium, mercury) below regulatory thresholds. For e-commerce or export shipments, request a customs declaration listing the HS codes and chemical composition. Failure to provide documentation triggers customs holds and financial penalties. The Category Compliance Risk Tier assessment includes the documentation review as a pre-PO checkpoint.

7. Procurement FAQ

What is the most critical metric to check in an apparel sample?

Fabric GSM measured per ASTM D3776 is the single most critical metric. A 180 GSM sample must measure 171–189 GSM (±5% tolerance). GSM below 171 indicates yarn count reduction or open-end construction substitution, directly impacting durability and print quality. Measure GSM with a circular cutter and digital scale.

How do I test decoration adhesion on a sample?

Apply pressure-sensitive tape (3M 600 or equivalent) across a 25 mm printed area. Press firmly for 60 seconds at 22°C. Peel at a 180-degree angle. ASTM D3359 criteria require 5B rating (0% coating removal). If any ink or transfer material transfers to the tape, reject the sample. This test catches Heat Transfer Vinyl Peel Strength failures and curing defects.

What is the acceptable shrinkage range for custom apparel?

Per AATCC 135, acceptable shrinkage varies by fiber content: 100% cotton: 5% length, 4% width; 50/50 cotton-polyester: 3% length, 2% width; 100% polyester: 2% length, 1.5% width. For corporate programs requiring dimensional consistency, specify maximum 3% in both directions. Wash the sample 3 times at 40°C before measurement.

How do I verify colorfastness on a custom apparel sample?

Use the ISO 105-X12 crockmeter method. Rub a white cotton cloth across the fabric under controlled pressure (9 N) for 10 cycles. Dry rubbing must achieve Grade 4 minimum; wet rubbing Grade 3.5 minimum. For commercial laundering programs, specify ISO 105-C06 Grade 4-5 and verify on the sample.
