Every buyer who has done this more than once has a story about the order that looked fine on paper. A multi-component kit arrives in a custom-printed box, only for the warehouse team to report that each unit takes three minutes to fold, insert, and seal. By day two of fulfillment, shipping throughput drops by half, and carrier dimensional weight surcharges wipe out the planned margin. We have seen this pattern enough times to know that unboxing failures rarely happen because the artwork was too simple—they happen because the structural design ignored operational reality.

Creating an elevated unboxing presentation does not require five-piece rigid setups, magnetic closures, or ribbon pulls. In fact, some of the most successful e-commerce brands and enterprise corporate gift programs run entirely on single-wall corrugated board and smart interior geometry. When buying teams prioritize clean structural lines, exact tolerances, and fast fulfillment assembly, simple packaging delivers an exceptional customer opening experience while remaining fully scalable.

Weeks 1–2: Auditing the Physical Footprint and Dimensional Constraints

Before selecting board finishes or reviewing color swatches, the packaging engineering process must start with an audit of the physical items being shipped. The primary objective at this stage is defining the total volumetric footprint of the contents when arranged in their intended unboxing layout.

What actually determines whether a simple packaging program stays cost-effective at scale is the volumetric ratio between internal product clearance and external carrier dimensional weight thresholds. If a box is sized even 10mm too large across one dimension, it can push the package into a higher carrier dimensional weight tier, adding $1.50 to $3.00 in freight costs per shipment across thousands of units.

When planning a multi-item presentation—such as an onboarding kit containing drinkware, branded apparel, and stationery—the layout should feel intentional rather than packed. Items should lie flat, facing the recipient immediately upon opening the top lid.

• Measure primary item dimensions: Record maximum length, width, height, and weight for every SKU in the program.
• Establish the reveal orientation: Determine which face of each product should capture attention when the lid folds back.
• Calculate shipping dimensional limits: Cross-reference planned outer dimensions against standard carrier DIM factors (Length × Width × Height / 139) to avoid unnecessary freight penalties.

In our experience, buying teams often make the mistake of selecting a stock box size first and attempting to fill the extra space with loose tissue paper or crinkle fill. Loose void fill allows contents to migrate during parcel transport, resulting in a disorganized, messy presentation when the end user opens the parcel.

Weeks 3–4: Board Substrate Engineering and Flute Selection

Once the spatial layout is established, the focus shifts to material specification. For simple custom packaging, the primary material choice lies between different grades of corrugated linerboard and flute profiles.

The difference between an unboxing box that arrives crisp and one that arrives crushed comes down to selecting board flute profile based on product weight rather than visual preference. Many designers default to E-flute because its thinner profile allows for crisp, fine-line flexographic printing. However, if the internal payload exceeds 500g, E-flute often lacks the necessary stacking crush strength required for parcel transit networks.

To ensure structural performance, specify board grades using recognized industry benchmarks:

• E-Flute Corrugated (1.5mm thickness): Excellent print surface smoothness. Best suited for cosmetics, small electronics, apparel, and lightweight items under 500g. Standard board strength target: 23 ECT to 32 ECT per TAPPI T 811.
• B-Flute Corrugated (3.0mm thickness): Superior cushioning and puncture resistance. Required for items over 500g, glass containers, heavy books, or multi-item gift kits. Standard board strength target: 32 ECT to 44 ECT tested via TAPPI T 811 and ASTM D642 box crush protocols.
• Kraft Linerboard (Natural Brown vs. Bleached White): Natural kraft brown 300 GSM liners offer an organic, highly recyclable aesthetic with high tear resistance. Bleached white liners provide maximum color contrast for vibrant brand graphics.

One thing we notice surprisingly often is that buyers compare quotations for white board versus natural kraft without accounting for how handling marks appear during parcel transit. A pure white outer box often collects dark scuffs from conveyor belts unless protected by an outer poly mailer or a protective water-based varnish coat.

Weeks 5–6: Interior Architecture, Inserts, and Clearance Tolerances

The moment of truth in an unboxing experience occurs when the outer lid lifts. The internal presentation relies heavily on how items are retained in place. Rather than relying on non-recyclable foam or messy void fill, simple packaging achieves a clean layout using custom die-cut corrugated or paperboard inserts.

The real driver of a clean unboxing experience is structural retention, where the primary item stays centered without requiring excessive secondary void fill. An insert should cradle the products firmly while allowing the recipient to easily lift each item out with two fingers.

The most critical engineering rule when drafting custom insert die-lines is the clearance tolerance margin:

The 5mm Clearance Rule: Always add a minimum of 5mm clearance to overall internal box dimensions when incorporating die-cut inserts. Paperboard has a natural fold radius and thickness that absorbs internal space. Designing zero-tolerance die-lines results in severe insert buckling and pinched corners during pack-line assembly.

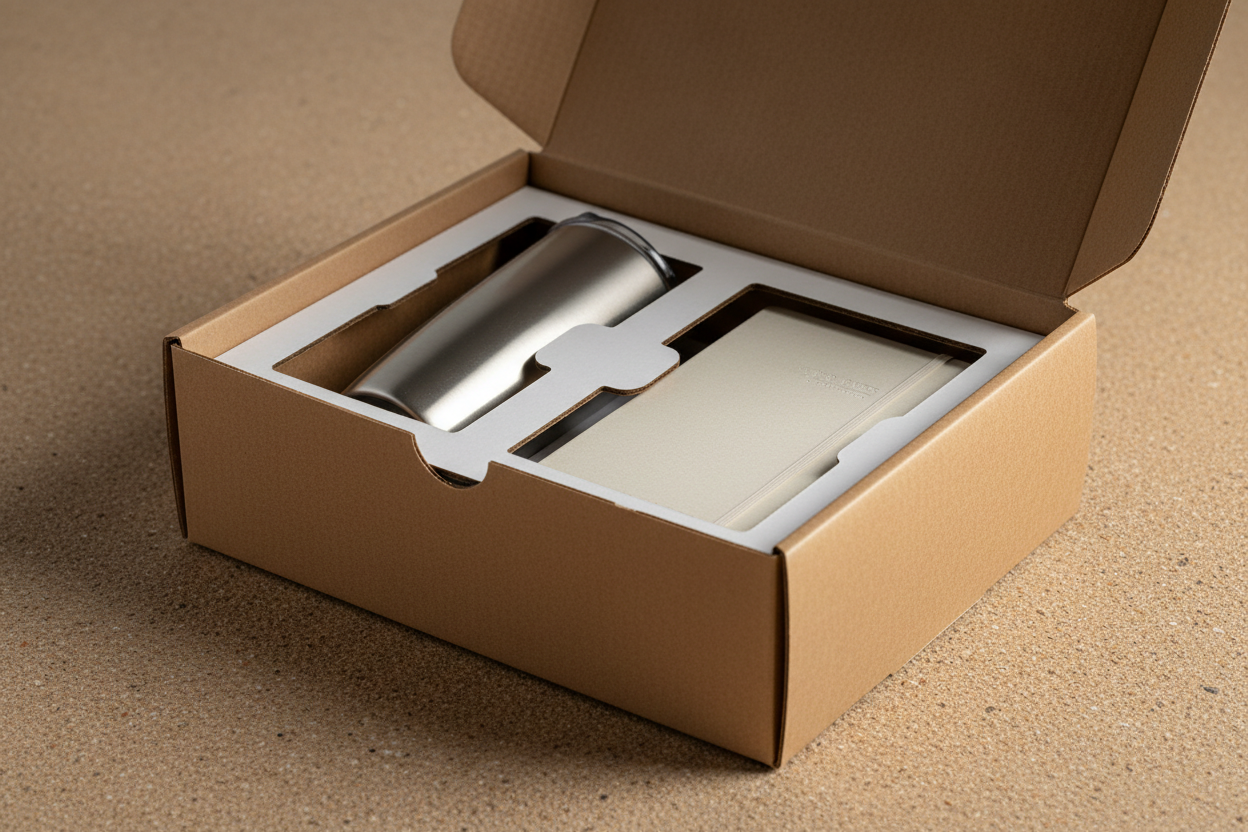

For example, if a corporate gift kit features a custom brass pen set and a hardcover journal, the die-cut insert cavity for the pen should include finger notches, while the outer insert perimeter maintains a 5mm clearance buffer against the internal box walls.

It’s worth noting how often a simple single-piece corrugated fold-over insert outperforms a complex three-piece assembly. A single piece of die-cut board that folds down on two sides creates an elevated platform, raising the products toward the opening plane while keeping material costs minimal.

Weeks 7–8: High-Impact Exterior Finishes with Single-Pass Printing

A common misconception in packaging procurement is that high-impact visual design requires multi-color process printing across every panel. In practice, full exterior coverage can sometimes look cluttered and increases unit production costs through extra ink passes and drying times.

What separates a memorable simple box from cheap packaging is high-contrast interior print positioning that creates an intentional visual reveal upon opening. A plain kraft brown box with minimal exterior text creates an understated exterior aesthetic. When opened, an interior lid printed in a rich flood coat or sharp white ink delivers a striking contrast that catches the eye immediately.

Consider these cost-efficient print and finishing combinations:

• Single-Color Flexographic Printing: Highly economical for high-volume runs. Using black or white ink on raw kraft board creates a clean, modern aesthetic with zero setup complexity.
• Interior Flood Coating: Printing a bold brand color across the inside top lid panel creates an immediate frame around the product insert without requiring exterior printing.
• Targeted Spot UV or Foil Stamping: Applying a localized clear spot UV gloss or metallic foil logo directly onto unvarnished kraft board provides a tactile contrast that feels premium under direct light.

When reviewing initial press proofs, ensure print contrast meets legibility requirements. Dark inks on brown kraft board shift in tone due to substrate absorption; always request a physical proof on the actual board stock rather than approving a digital PDF proof.

Weeks 9–10: Pack-Line Efficiency and Fulfillment Assembly Testing

A packaging design can look immaculate on a designer's desk, but if it slows down fulfillment execution in the warehouse, it fails as a commercial solution. The final stage of development before approving full production runs is pack-line assembly timing.

The long-term viability of a simple packaging design depends more on pack-line assembly seconds per unit than on the initial unit manufacturing cost. Saving $0.20 per box on structural board is meaningless if the box design adds 40 seconds of manual folding labor costing $0.50 in warehouse labor per unit.

When testing prototype samples on the packing line, compare these core box styles:

• Roll-End Tuck-Top (RETT) Mailer: The standard for DTC unboxing. Features double-wall side panels that lock into place without adhesive tape. Average assembly time: 10 to 14 seconds per unit.
• Auto-Bottom Corrugated Box: Pre-glued base snaps square instantly when expanded. Ideal for high-speed packing lines. Average assembly time: 4 to 6 seconds per unit.
• Manual Flap Slotted Container (RSC): Requires bottom taping and top sealing. Highly economical board usage, but lacks a clean opening reveal. Average assembly time: 18 to 25 seconds per unit.

For a regional sports league ordering 1,200 player welcome kits ahead of a new season, switching from a taped RSC carton with loose paper fill to a self-locking RETT mailer with a drop-in die-cut insert reduced packing time from 45 seconds to 12 seconds per kit. That shift allowed a small stadium volunteer team to clear the entire kit assembly project in a single afternoon without running into packing line delays.

Post-Launch: Scaling the Packaging Program from 1,000 to 10,000 Units

Once the initial production run is deployed and customer feedback is gathered, procurement teams should evaluate scale thresholds for subsequent reorders. As order volumes grow from pilot runs (1,000 units) to full-scale program volumes (10,000+ units), the underlying manufacturing economics change significantly.

Scaling an unboxing program from pilot volumes to full production requires shifting from digital print on stock die-lines to high-speed offset flexo on optimized custom cutting dies. At 1,000 units, digital printing avoids setup plate fees ($150–$300 per color). However, at 10,000 units, flexographic printing on custom cutting dies amortizes tooling costs down to fractions of a cent, dropping unit costs from $1.85 to $0.92 per box.

By keeping the core structural footprint simple, buying teams retain maximum flexibility to upgrade linerboard grades, adjust interior insert configurations, or refine graphic artwork without discarding expensive base tooling. Simple structural packaging provides a resilient foundation that protects product margins, speeds up fulfillment, and delivers a clean unboxing experience every time.

What Buyers Usually Ask Next

How do I prevent custom kraft boxes from showing scuffs during shipping?

Natural kraft board naturally resists visible scuffs better than solid black or dark-printed exteriors. If using dark printed outer surfaces, request a protective matte or gloss water-based coating from the manufacturer. Alternatively, shipping the primary unboxing box inside a lightweight, 100% recycled poly mailer keeps the outer board completely pristine upon delivery.

What is the minimum order quantity (MOQ) for custom-sized corrugated mailers?

For custom structural die-cut mailers using digital printing, MOQs typically start at 100 to 250 units. For traditional flexographic printing requiring custom steel cutting dies and print plates, standard factory MOQs generally start at 1,000 to 2,500 units to achieve cost efficiency on machine setup times.

Can simple corrugated packaging be fully recycled by the end consumer?

Yes, provided the components are specified correctly. Uncoated corrugated board, paperboard inserts, and water-based flexographic inks are 100% curbside recyclable. Avoid heavy plastic laminates, non-water-soluble foil stamping, or permanent synthetic foam inserts, as these require manual separation and often end up in municipal waste streams.

How do I calculate if a custom box design fits within carrier dimensional weight rules?

Multiply the outer box length, width, and height in inches, then divide the total cubic volume by the carrier DIM factor (typically 139 for standard US commercial parcel accounts). If the resulting dimensional weight calculation exceeds the actual gross weight of the packed box, freight charges will be billed at the higher dimensional weight figure.
