How to Choose Packaging for Branded Merchandise?
The Background: Sourcing 1,200 Multi-Item Executive Onboarding Kits
The sample box arrives a day before the deadline to approve it, and the color is almost — not quite — right. Our team was tasked with preparing a multi-item executive onboarding kit for a company onboarding a large new-hire cohort in the same month.
From an operational standpoint, this wasn't just a matter of selecting an attractive container. The packaging had to accomplish three non-negotiable goals: safeguard the ceramic mug against courier drop damage, align strictly with our corporate Scope 3 carbon and zero-waste landfill policies, and maintain precise color matching across two separate manufacturing runs split three weeks apart.
The true cost of merchandise packaging is rarely the unit purchase price, but rather its performance under courier transit and its alignment with corporate end-of-life waste standards. When custom packaging fails—whether through crushed corners or non-recyclable materials—it creates both operational friction and unnecessary corporate waste. Here is how our buying team navigated the structural, material, and chemical requirements to build a reliable packaging specification.
Structural Material Trade-Offs: E-Flute vs. B-Flute Under Real Transit Stress

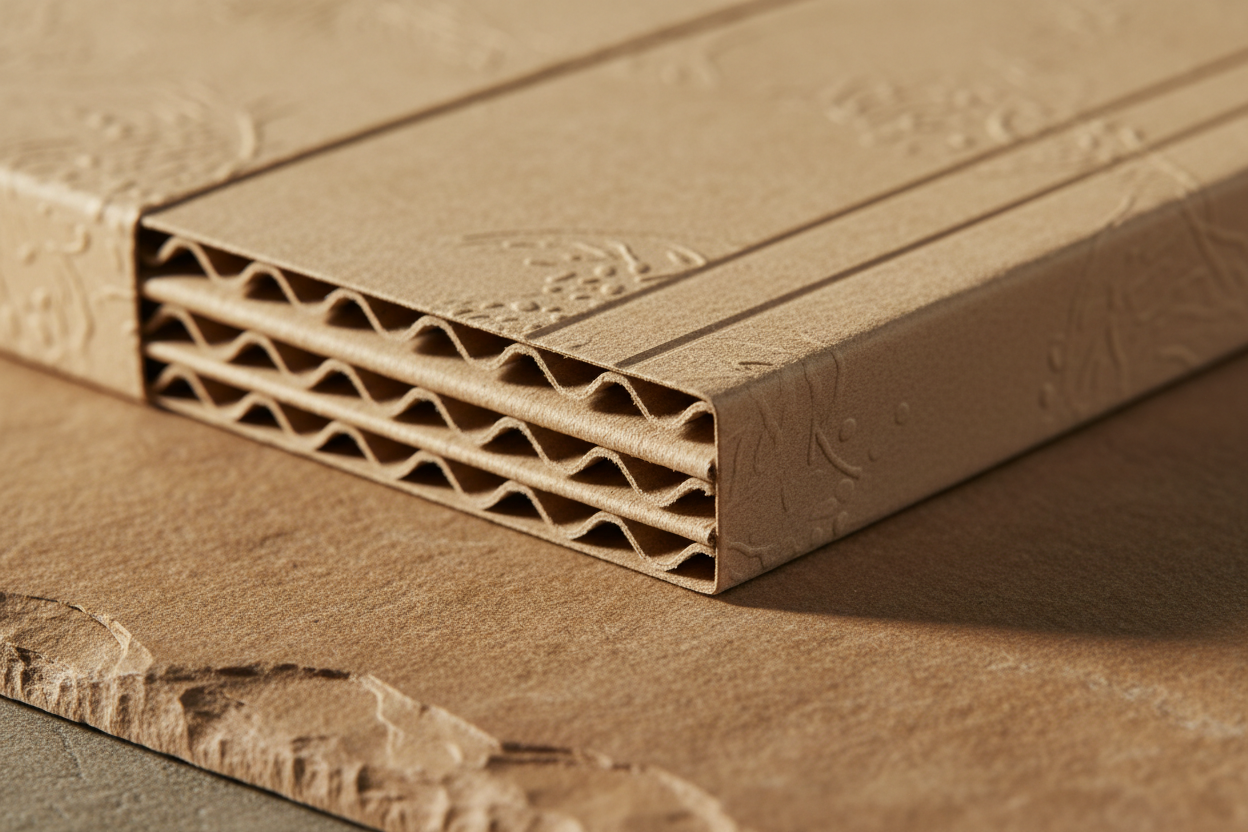

Our initial design review centered on board caliper and flute profile. Fluting refers to the wave-shaped corrugated paper medium glued between the inner and outer flat linerboards. The two most common choices for custom merchandise mailers are E-flute (1.5mm thickness) and B-flute (3.0mm thickness).
The initial agency presentation recommended E-flute corrugated board because its thinner profile provides a tighter, flatter surface for high-resolution graphics and fine text printing. However, testing the total weight of our merchandise payload revealed a problem. The combined kit weighed approximately 1.2 kg (2.6 lbs). Under ASTM D642 box compression testing, E-flute mailers loaded with over 1 kg of irregular weight showed corner sagging when stacked four high in transit simulation.
What actually determines whether a branded box survives courier handling without corner crushing comes down to the Edge Crush Test rating of the corrugated liner, not the paper weight alone. To guarantee protection, we switched the outer mailer specification to a high-grade B-flute corrugated board rated at a minimum TAPPI T 811 ECT-32 standard. B-flute’s thicker arc geometry absorbs vertical impacts and side punctures far better during parcel sorting. For the inner presentation tray, where high-density printing mattered more than structural load, we utilized an E-flute insert sheet. This hybrid approach delivered the necessary outer transit strength while maintaining crisp interior branding.
One thing that becomes clear after a few cycles is that consistency matters more than any single spec on paper.
The Complication: Insert Interference and Coating Recyclability Conflicts
Three weeks into project development, during our first full pre-production physical prototype review, two distinct engineering issues emerged. First, the custom die-cut insert holding the ceramic mug was cut tight to the mug’s outer dimensions. When the heavy fleece hoodie was packed into the adjacent compartment, it expanded against the paperboard divider wall, pinching the mug pocket shut. Assembly workers at the fulfillment center had to force the ceramic mug into place, causing stress tears along the internal kraft seams.
Second, to achieve a soft matte tactile feel, the supplier’s initial specification applied a conventional polypropylene (OPP) soft-touch plastic film lamination over the printed paperboard. While visually appealing, applying a plastic film over paperboard renders the packaging non-repulpable under standard municipal recycling systems (such as EN 13432 guidelines). The box would have ended up in a landfill, directly violating our corporate waste-reduction directives.
The difference between a functional custom insert and a damaged product run lies in adding a mandatory 5mm clearance margin across all internal pocket dimensions. Without this relief buffer, normal material manufacturing variances in textiles or ceramics cause binding against rigid board walls.
Resolving the Specification: Water-Based Coatings and Precision Die-Cut Cardboard
We resolved the structural interference issue by recalculating the CAD die-lines. We applied a strict 5mm clearance buffer across all three axes of every insert pocket. Additionally, we replaced the rigid wall divider with a double-wall folded paperboard crease, allowing the insert to flex slightly when bulky garments were compressed alongside rigid items.
To address the sustainability conflict, we eliminated plastic lamination entirely. We specified a 100% water-based (aqueous) soft-touch matte coating printed over Forest Stewardship Council certified paperboard (FSC Mix) using vegetable soy-based inks.
Choosing aqueous soft-touch coatings over traditional polyethylene laminates preserves a box's 100% kerbside recyclability while maintaining a premium tactile finish. The aqueous finish protects against scuffing during transit and allows the entire corrugated container to be thrown directly into standard office paper recycling bins without requiring chemical separation.
- Mandate FSC-certified paperboard (FSC Mix or Recycled) for all corrugated liners and folding boards.
- Specify water-based aqueous coatings or water varnish instead of plastic film laminations.
- Apply the 5mm internal clearance rule across all insert die-cut pocket dimensions.
- Verify TAPPI T 811 ECT-32 minimum strength for any box carrying over 500g payload.
- Set spectrographic Delta E color limits (ΔE < 2.0) in production contracts.
Batch-to-Batch Quality Control: Locking Specifications for Scale
With structural dimensions and chemical coatings finalized, the remaining challenge was color stability. Because our 1,200 kits were manufactured in two separate press runs three weeks apart, relying on visual inspection under warehouse lighting was insufficient. Minor variations in ink humidity or paperboard absorbency can shift brand colors between batches.
Ensuring color and structural consistency across repeat packaging runs requires locking master spectrographic color targets rather than approving physical samples visually. We established a master Pantone target (PMS 7540C) and required the printer to conduct spectrographic ink density audits during production. The contract specified a maximum allowable Delta E (ΔE) color variance of 1.8. When batch two arrived, spectrographic testing confirmed a ΔE reading of 1.2 relative to batch one, ensuring perfect visual uniformity across all 1,200 onboarding kits.
It’s not unusual for the cheapest quote to become the most expensive option once rework and delay are counted. By auditing structural flute integrity, enforcing plastic-free surface coatings, and locking quantitative color metrics upfront, buying teams can source packaging that protects both the product and the environment.
What Buyers Usually Ask Next
What is the most eco-friendly alternative to plastic foam packaging inserts?
The most sustainable alternative to expanded polyethylene (EPE) or EVA foam is 100% post-consumer recycled die-cut corrugated paperboard or molded sugarcane bagasse pulp. Folded corrugated inserts can be engineered with compression tabs to hold heavy or fragile items securely while remaining completely repulpable in standard paper recycling streams.
How do we prevent dark-printed custom boxes from showing white edges along cut lines?
White cut edges occur when dark inks are printed over standard white-lined paperboard. To eliminate white paper lines along die-cut edges and folds, specify solid bleached kraft (SBK) board or through-dyed black kraft paperboard. Alternatively, ask your printer to apply edge-staining or full-bleed flood printing along all die crease zones.
What is the minimum order quantity (MOQ) threshold for custom die-cut merchandise boxes?
Custom structural packaging typically carries an MOQ threshold of 250 to 500 units for digital printing, where custom physical die-cut tooling is not required. For high-volume CMYK offset printing with custom structural steel-rule dies, MOQs generally start at 1,000 to 2,500 units to amortize setup and tooling costs efficiently.
How does box weight affect overall landed fulfillment and shipping costs?
Dimensional weight (DIM weight) pricing applied by major courier carriers penalizes overly large boxes regardless of item weight. Optimizing your packaging internal dimensions to remove excess air space—and keeping outer box dimensions under standard carrier threshold breakpoints—can reduce parcel transit costs by 12% to 22% on national distribution rollouts.
